High Pressure Multistage Coolant Pumps (CTS)
High Pressure Multistage Coolant Pumps / Through Coolant System (CTS)
IGE-LKF Series High Pressure Multistage Coolant Pumps are specially engineered for CNC machines, VMCs, HMCs, gun drilling machines, deep hole drilling systems, grinding machines and through-spindle coolant applications. These pumps deliver high-pressure coolant directly to the cutting zone for improved machining accuracy, better chip evacuation, enhanced tool life and superior surface finish.
Industrial Applications

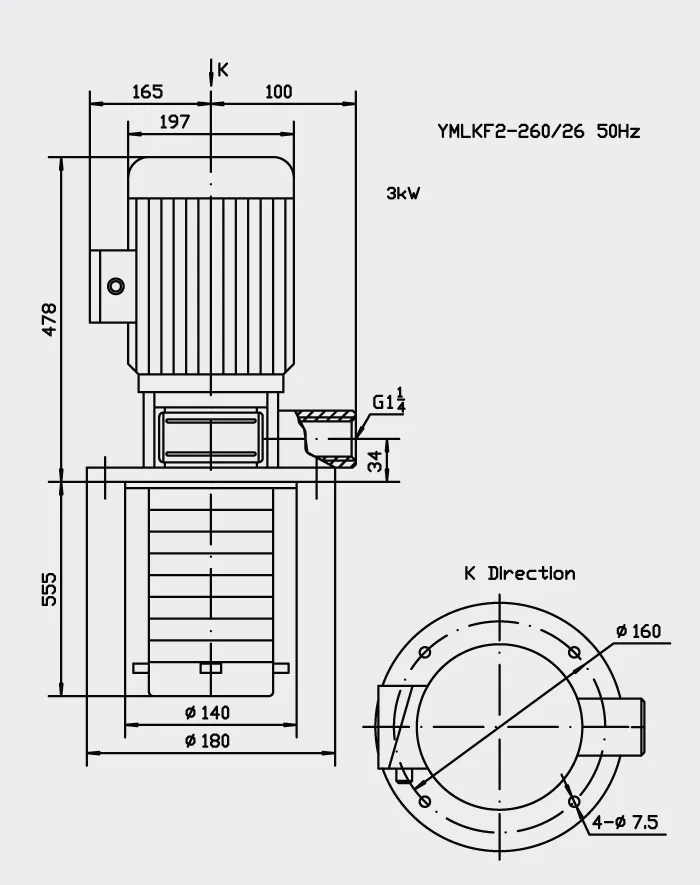

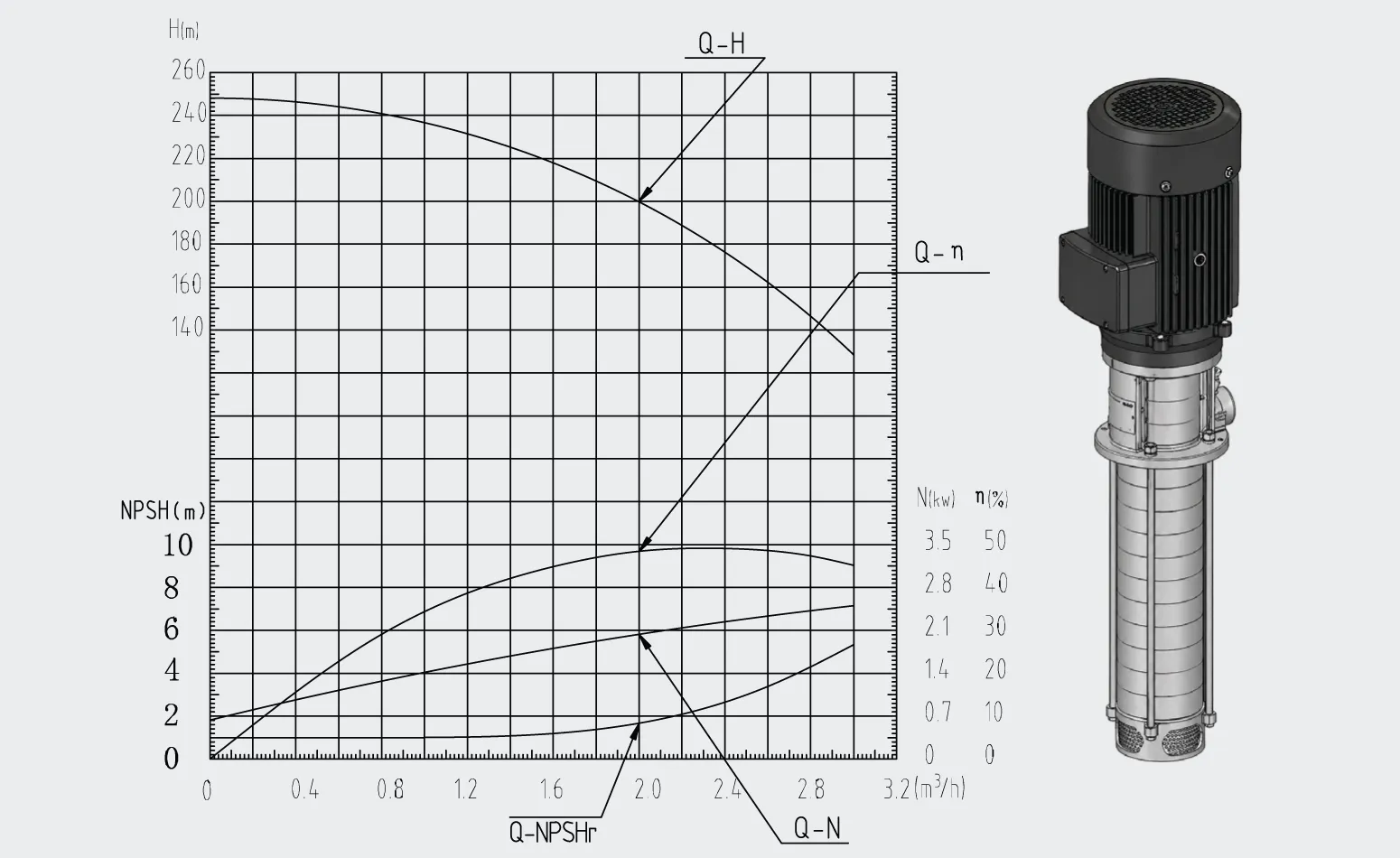

IGE-LKF2-260-26
High Pressure Multistage Coolant Pump
| Flow Rate | 50 LPM |
| Maximum Pressure | 20 Bar |
| Brake Power | 2.08 kW |
| Motor Power | 3.0 kW |
| Speed | 2900 RPM |
| Efficiency | 48% |
| Material | SS304 / SS316 |
| Temperature Range | -15°C to +120°C |
KEY FEATURES
Enhanced
Tool Life
Consistent high-pressure coolant delivery reduces tool wear and increases operational efficiency.
Superior
Surface Finish
Precision coolant flow ensures improved lubrication and tighter machining tolerances.
Long
Service Life
Designed for continuous industrial-duty applications.

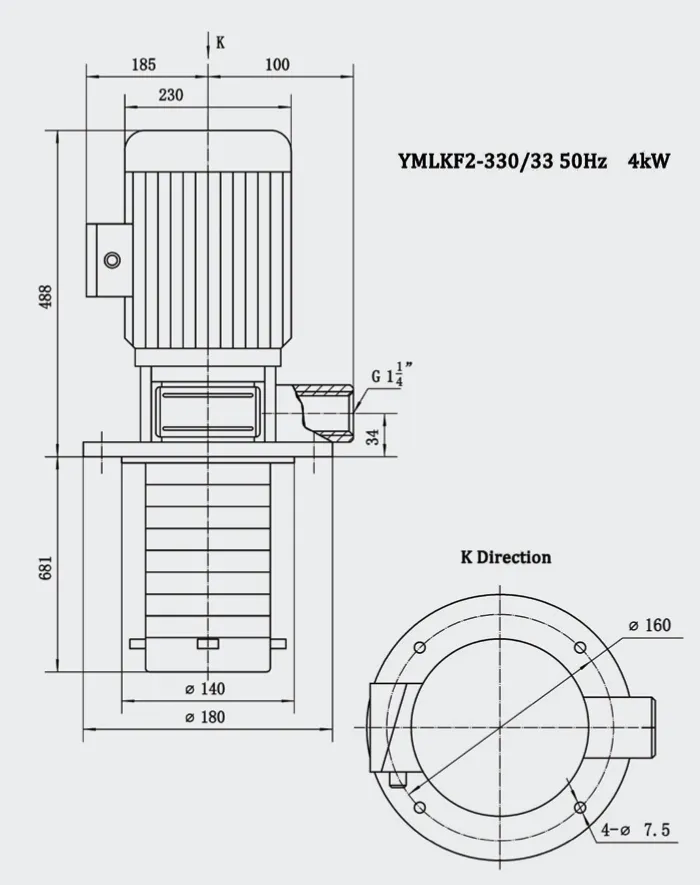

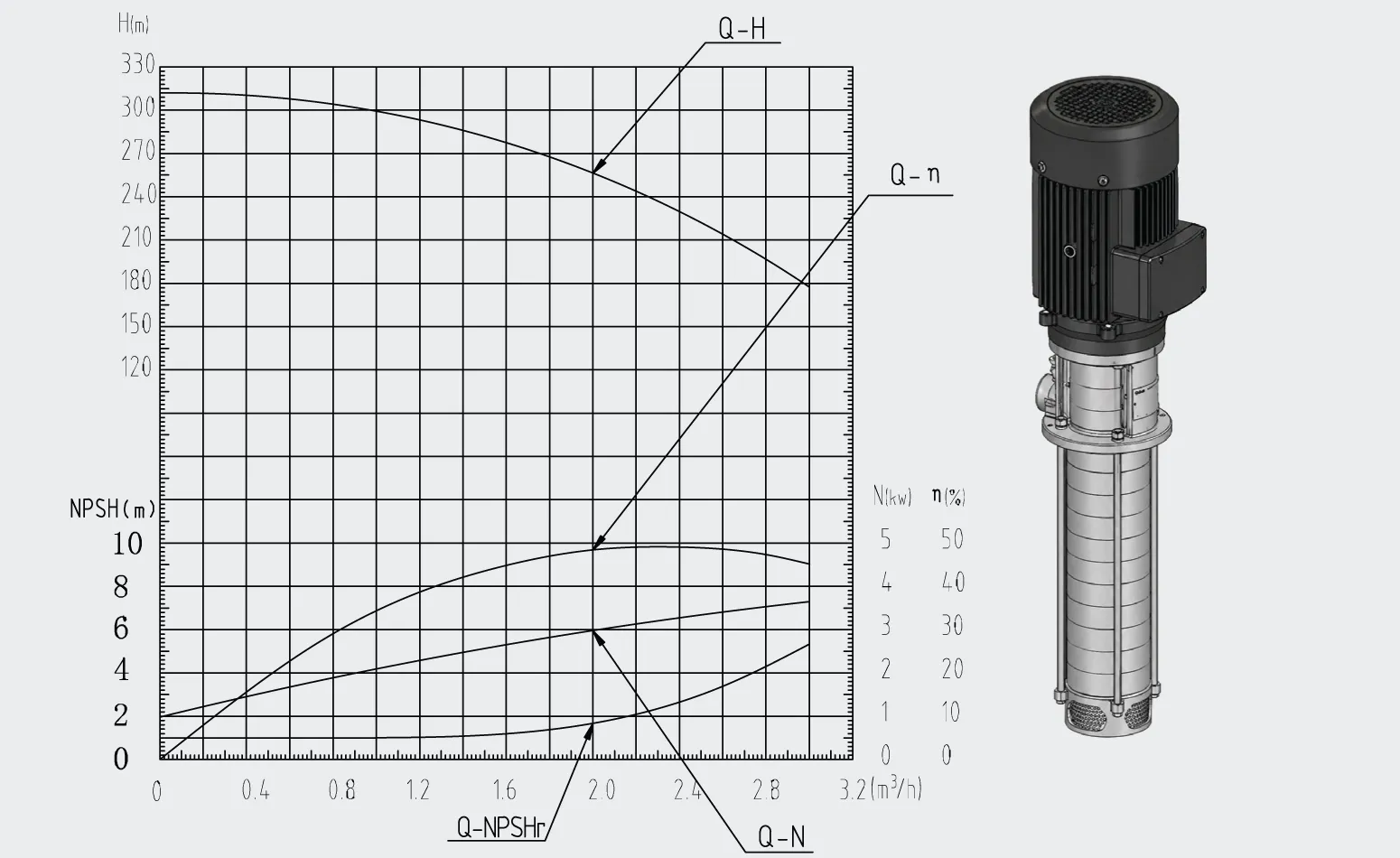

IGE-LKF2-330-33
High Pressure Multistage Coolant Pump
| Flow Rate | 20 - 70 LPM |
| Maximum Pressure | 10 - 30 Bar |
| Brake Power | 2.98 kW |
| Motor Power | 4.0 kW |
| Speed | 2900 RPM |
| Efficiency | 0.48% |
| Material | SS304 / SS316 |
| Temperature Range | -15°C to +120°C |
PERFORMANCE ADVANTAGES
High
Pressure Output
Stable coolant delivery for demanding machining operations.
Improved
Machining Accuracy
Better chip removal and thermal control improve final product quality.
Long
Service Life
Designed for continuous industrial-duty applications.
Need a Custom Industrial Pumping Solution?
Get expert consultation and high performance pumping equipment engineered specifically for your industrial application.
